Three Phase Pad Mount Transformer
Offer custom-designed products with varying voltage levels to meet the requirements of different national power grids and provide OEM services.

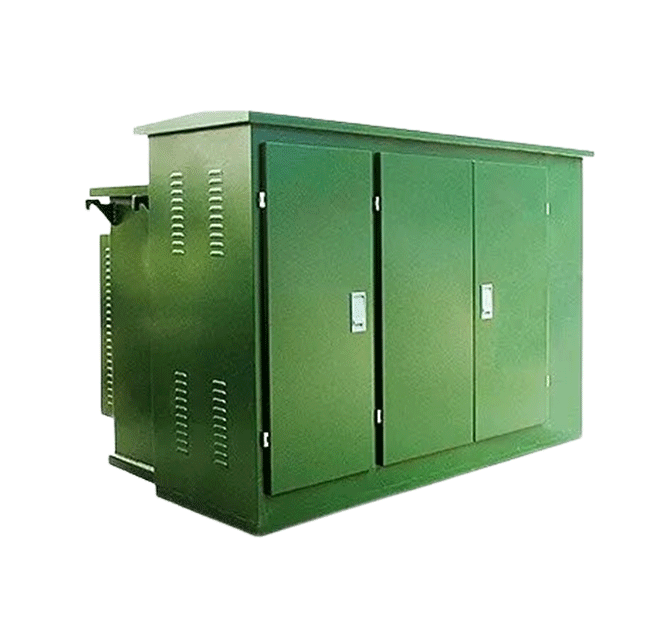

Three Phase Pad Mount Transformer For Sale
Our three phase pad mount transformer offers robust construction, easy installation, and superior safety standards, ensuring seamless power delivery, and minimal maintenance. Perfect for industrial and commercial applications, and any place requires consistent power delivery.
Main Parameters
Power rating: 75-3750 kVA
Primary voltage: Up to 34.5kV
Secondary voltage: 480V, 600V
Working Conditions
Altitude should not exceed 2000 meters.
Operating environment temperature should be between -25โ and +40โ.
The relative humidity should not exceed 90%(+25โ).
During installation, the inclination to the vertical plane should not exceed 5ยฐ.
The entire cabinet row should be relatively flat and comply with the (GBJ232-2) standard.

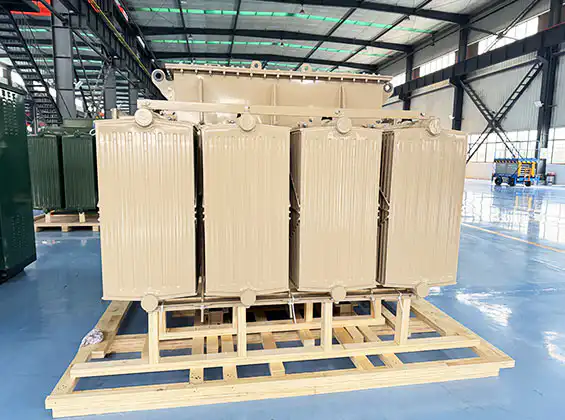

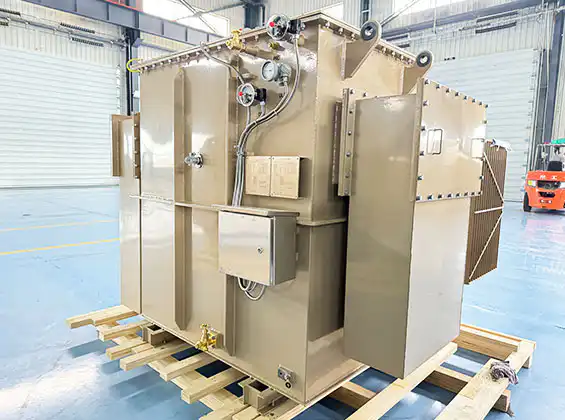

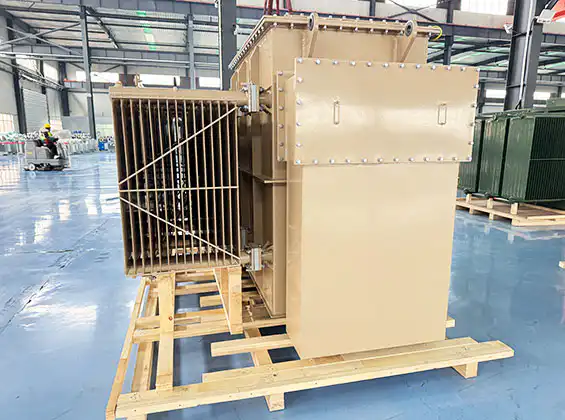

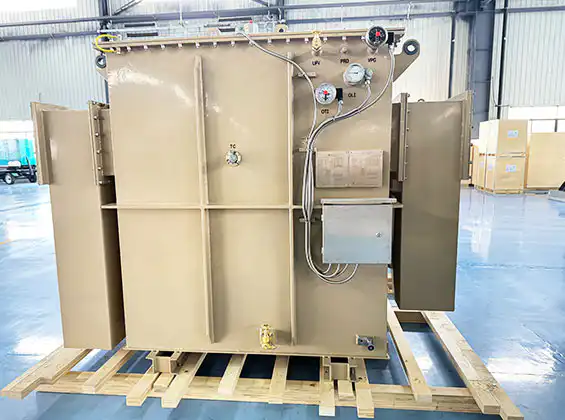

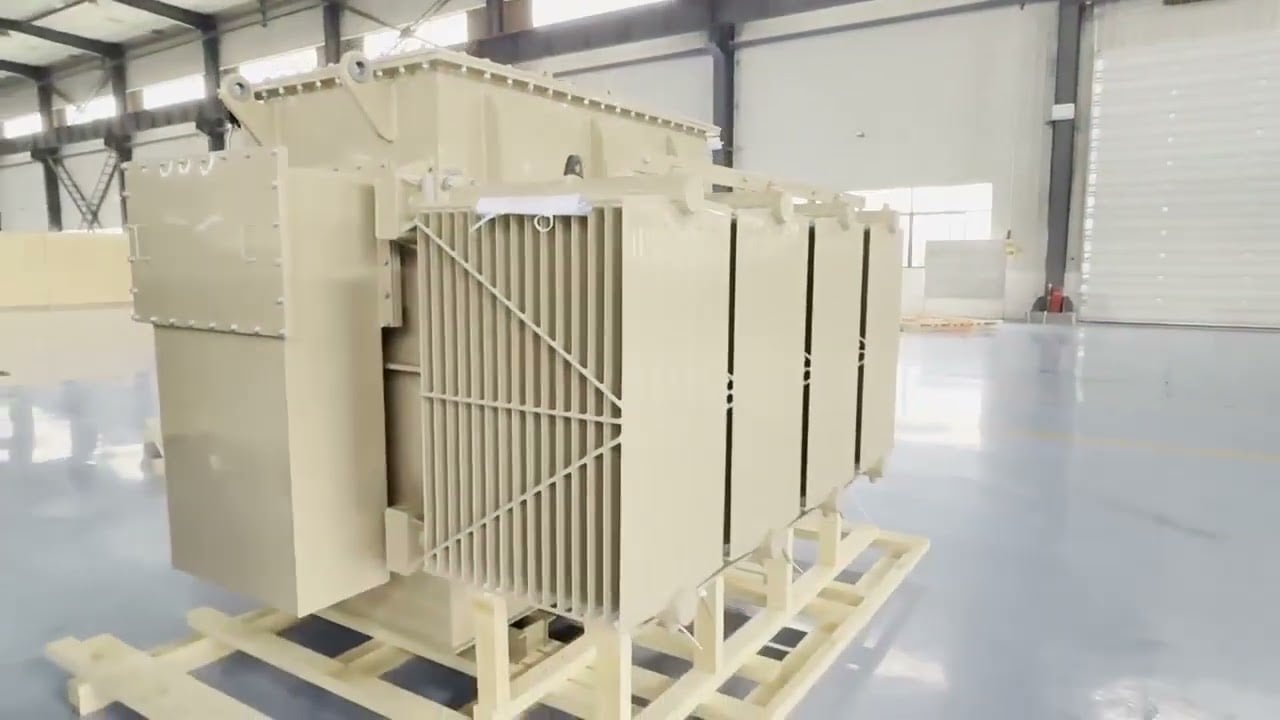

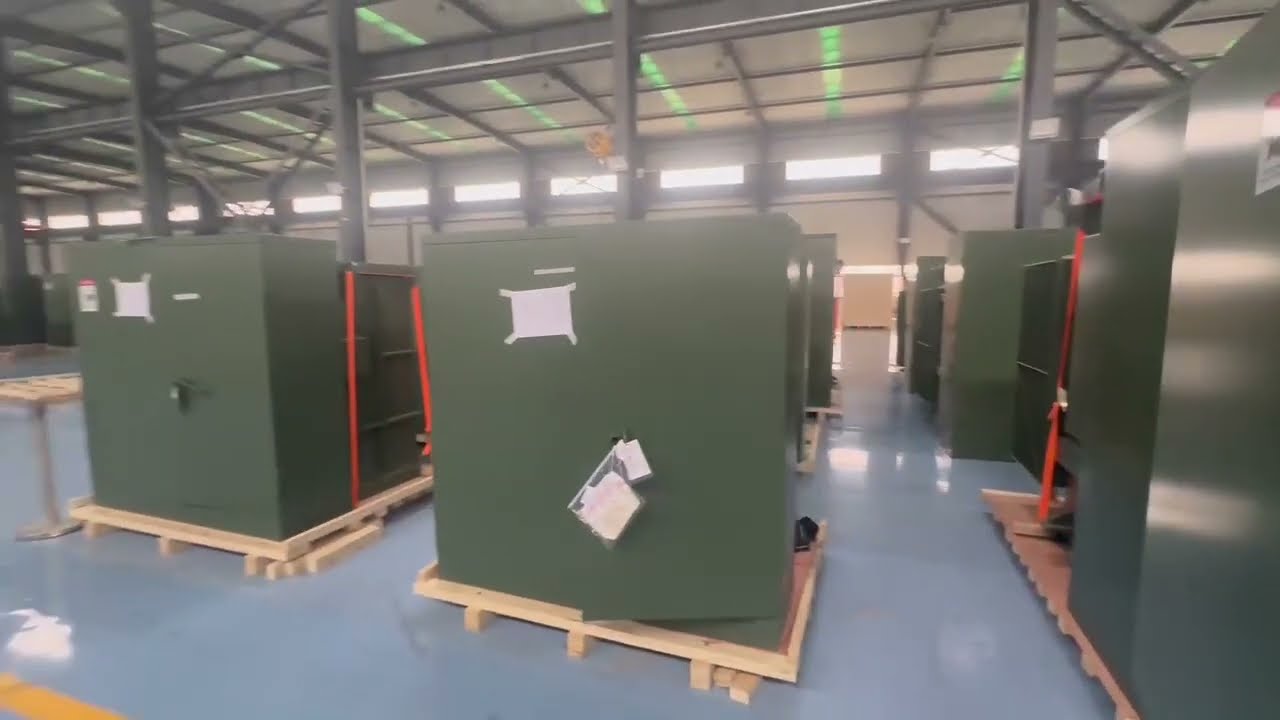

Amercian Type Distribution Transformers For Sale
Tengyi Three Phase Pad Mount Transformer Advantages
Tengyi three phase pad-mounted transformers are compact, safe, and easy to install. They require low maintenance, offer reliable performance, and blend well into urban environments, making them ideal for various applications.
Strong Overload Capacity
With the ability to handle double overload for 2 hours and 1.6 times overload for 7 hours, Tengyi three phase pad mount transformer ensures dependable performance even under demanding conditions.
Compact and Aesthetic Design
Boasting a compact, fully-sealed structure with separate high and low voltage components, our three phase American type substation occupies only 1/5 to 1/3 of the volume of similar units, ensuring easy installation.
Versatile Application Use
Easily adaptable for both ring networks and terminal applications, our transformer simplifies power conversion and enhances supply reliability, ensuring seamless integration into various electrical systems.
Fire Safety Assurance
Utilizing high flashpoint oil, Tengyi three phase pad mounted transformers can be safely placed indoors. This design significantly reduces fire hazards and enhances personal and property safety in populated areas.
Emergency Cable Operation
Equipped with elbow cable connectors that can act as load switches and isolators in emergencies, providing flexible and easy operation when it matters most.
Compact Switch Integration
Featuring a high-voltage load switch within the oil tank, it offers 360ยฐ operation for safe, reliable load current interruption, improving convenience and supply reliability.

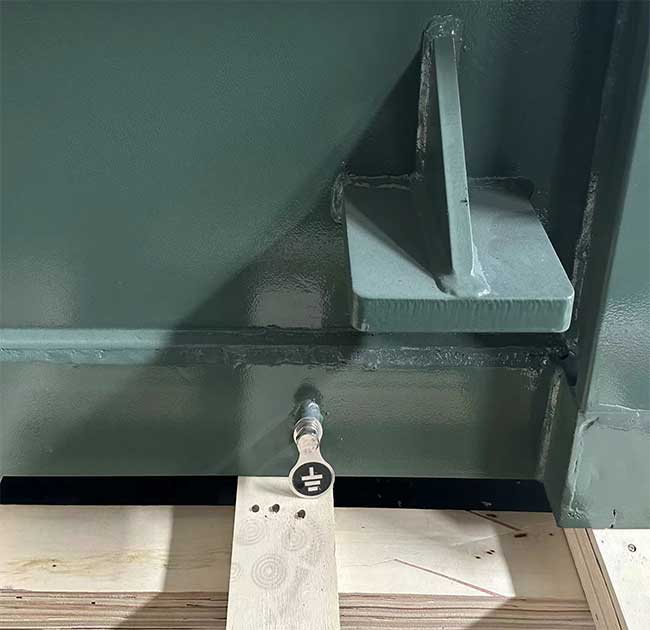

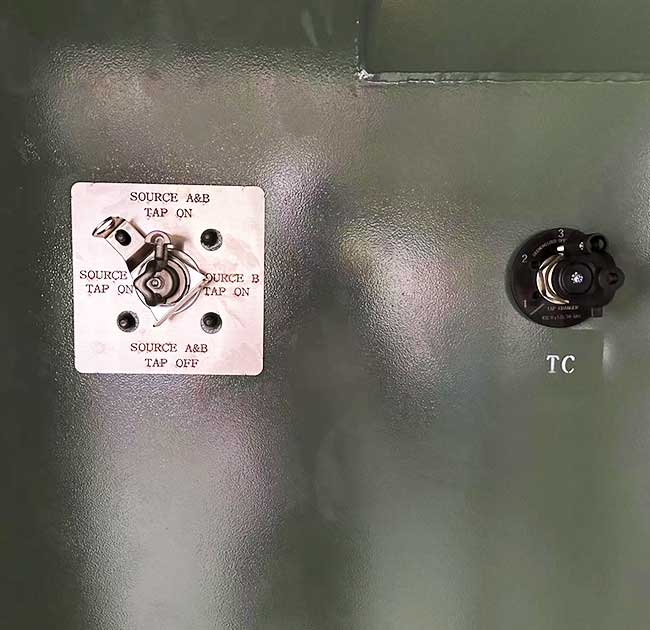

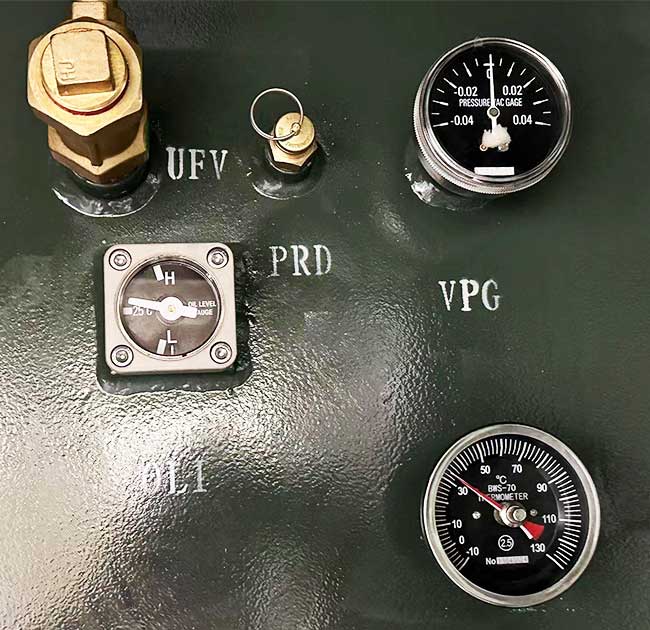

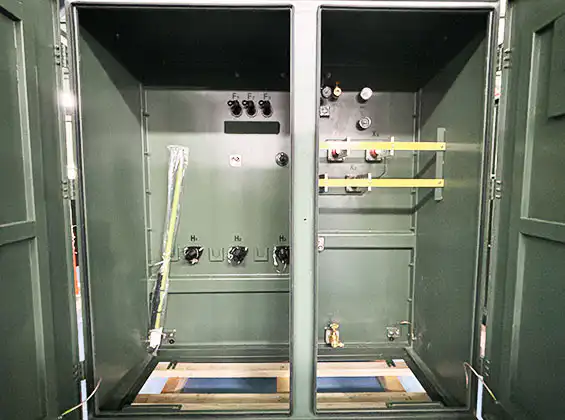

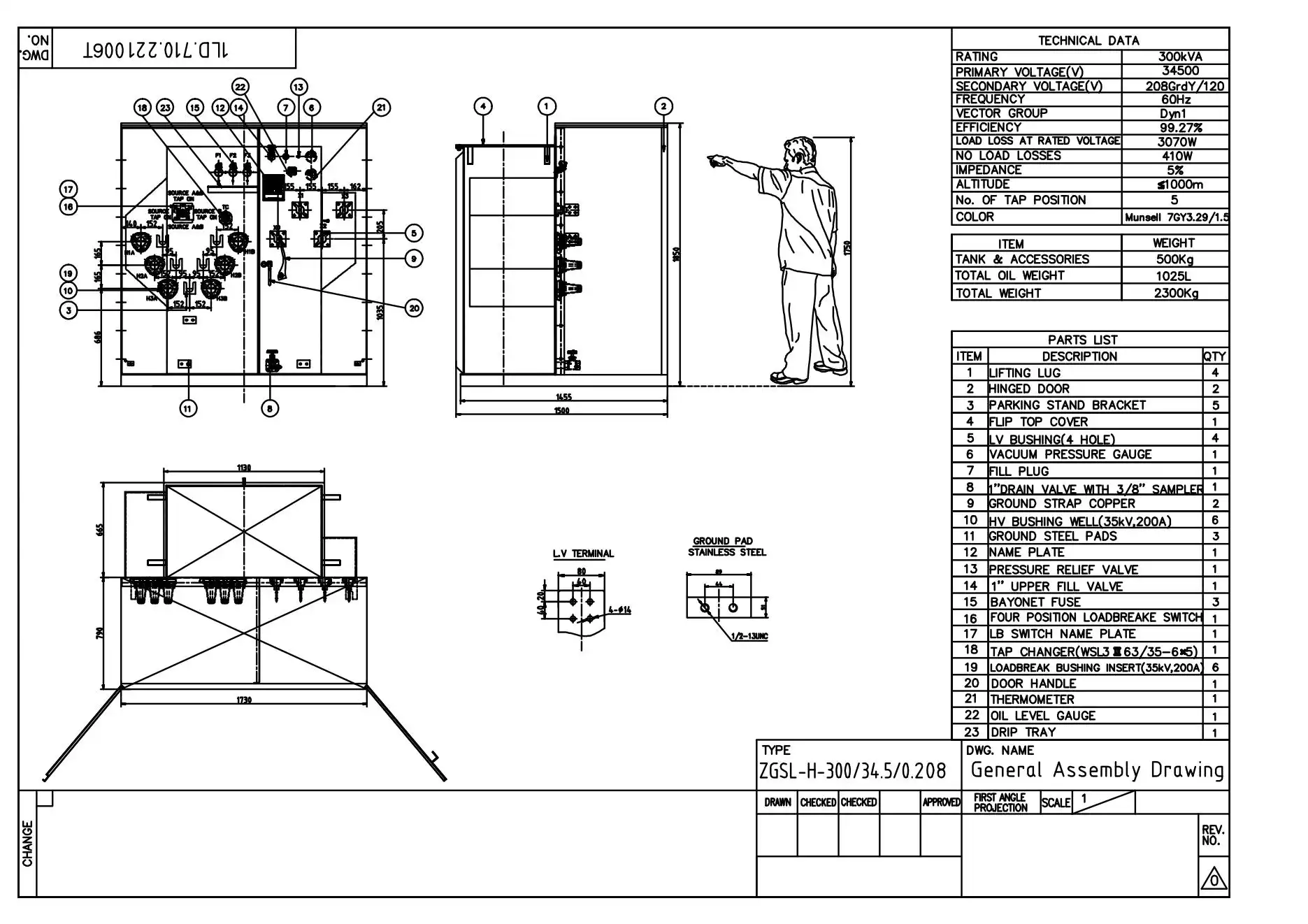

34.5kV, 300kVA Pad Mount Transformer Design
Three Phase Pad Mount Transformer Specification
| Rated Capacity(kVA) | High Voltage(kV) | Low Voltage(kV) | No-load loss(W) | On-load Loss(W) |
| 75 | 34.5 13.8 13.2 7.2 | 0.48 0.6 | 180 | 1250 |
| 150 | 280 | 2200 | ||
| 225 | 400 | 3050 | ||
| 300 | 480 | 3650 | ||
| 500 | 680 | 5100 | ||
| 750 | 980 | 7500 | ||
| 1000 | 1150 | 10300 | ||
| 1200 | 1320 | 12120 | ||
| 1500 | 1640 | 14500 | ||
| 2000 | 2160 | 20645 | ||
| 2500 | 2680 | 27786 | ||
| 3000 | 3300 | 30300 | ||
| 3750 | 4125 | 37875 |
About Tengyi
We are a premier enterprise specialising in designing, manufacturing, and testing a wide array of transformers.
Our advanced production facility covers over 11,000 square meters and features a maximum lifting capacity of 240 tons, allowing us to achieve an impressive annual production capacity of 12,000 MVA.
We provide transformers suitable for voltage ranges from 52 to 800 kV, with power ratings from 20 to 600 MVA, and our auto-transformers can reach capacities of up to 1,000 MVA.

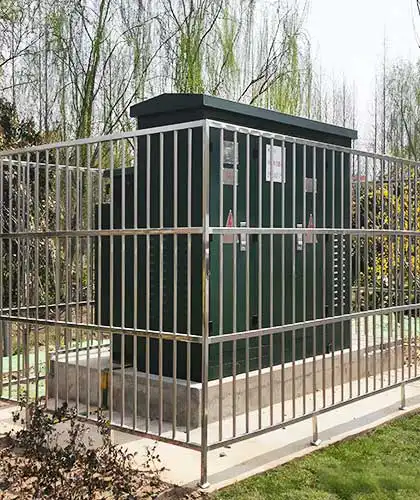

Global Cases

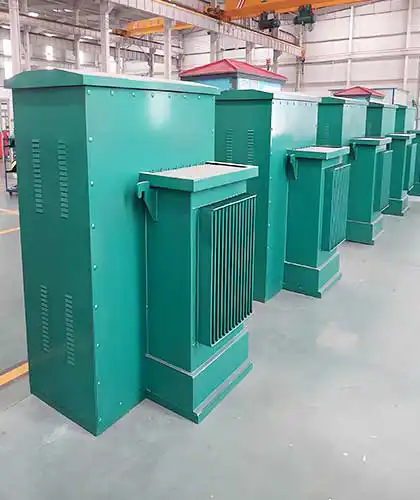

Pad Mounted Transformer Ready to Be Sent to Pakistan
Pad Mounted Transformer Ready to Be Sent to Uruguay
Pad Mounted Transformer Ready to Be Sent to Guyana

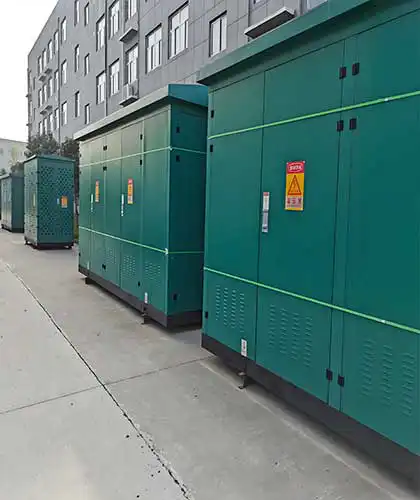

Pad Mount Transformer Installation in Philippines
Customer Feedback
Syed Akber ali
– from Pakistan
Tengyi three-phase pad mount transformer has proven to be exceptionally durable. It handles heavy loads with ease, maintaining stable performance even under challenging conditions. Its robust construction and reliable operation have greatly enhanced our power distribution system, making it a crucial component of our infrastructure.
โ โ โ โ โ
Nomwendรฉ Benjamin
– from Burkina Faso
The pad mount transformer we buy from Tengyi offers remarkable efficiency in a compact design. It fits perfectly in our limited space and delivers consistent power without any issues. Installation was straightforward, and its low maintenance requirements have been a huge advantage for our team, enhancing overall operational efficiency.
โ โ โ โ โ

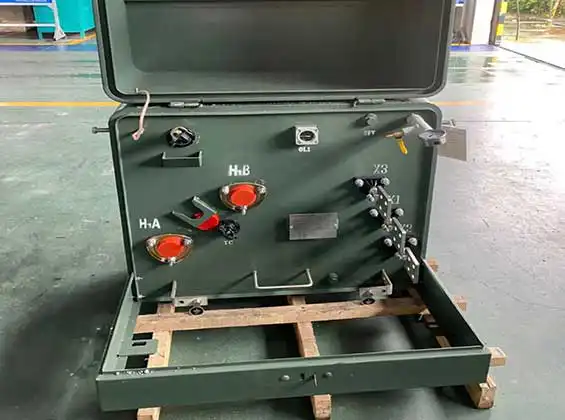

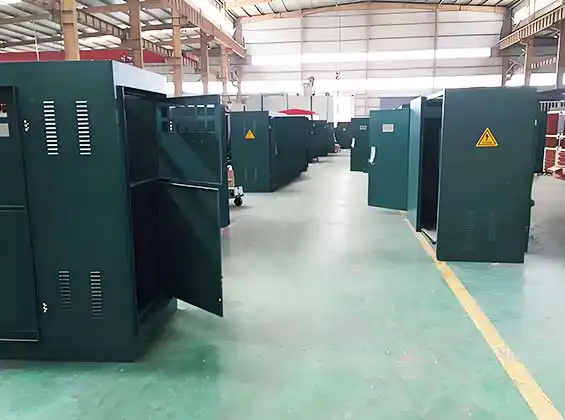

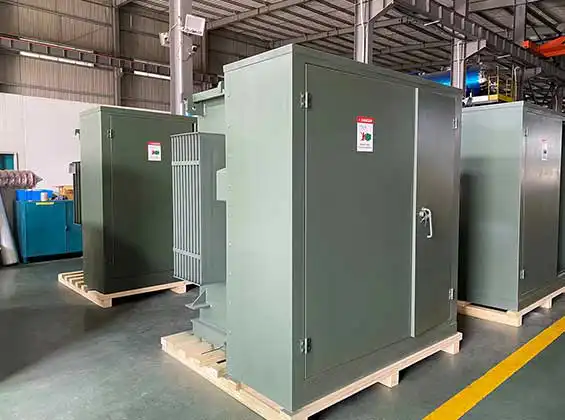

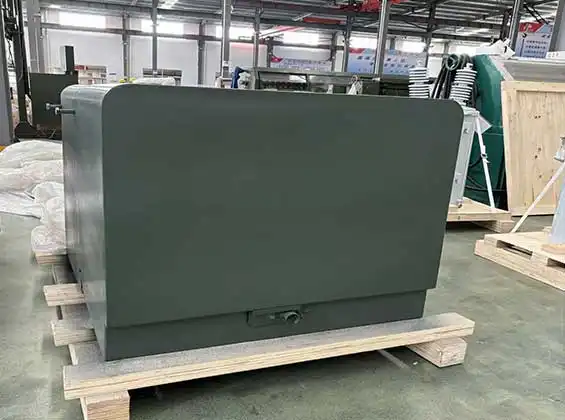

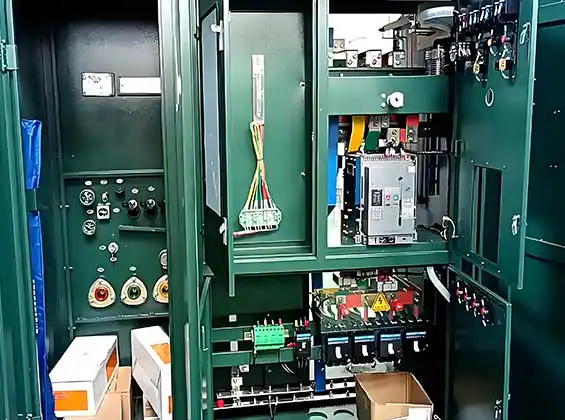

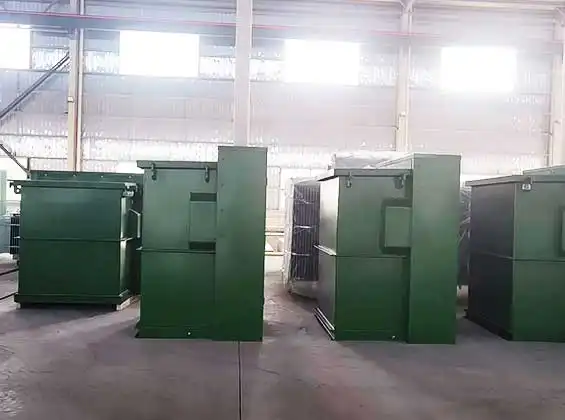

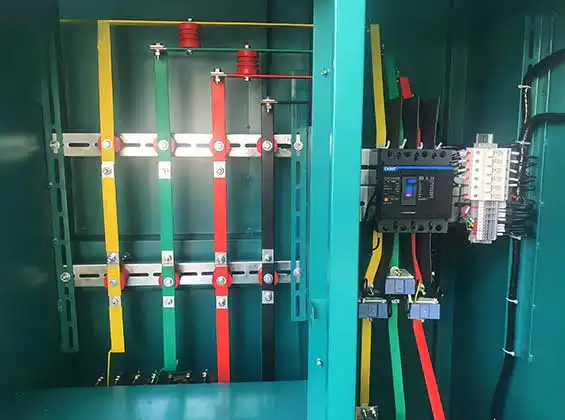

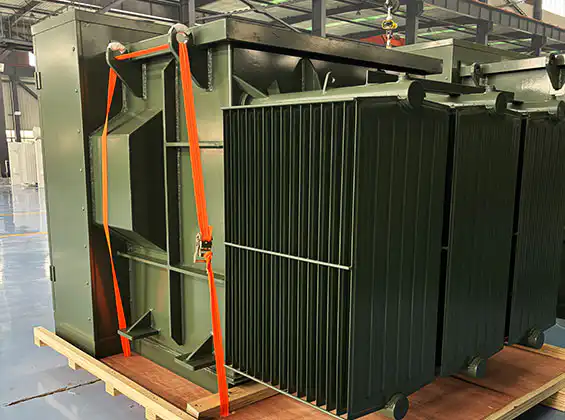

Pad Mount Transformer Workshop

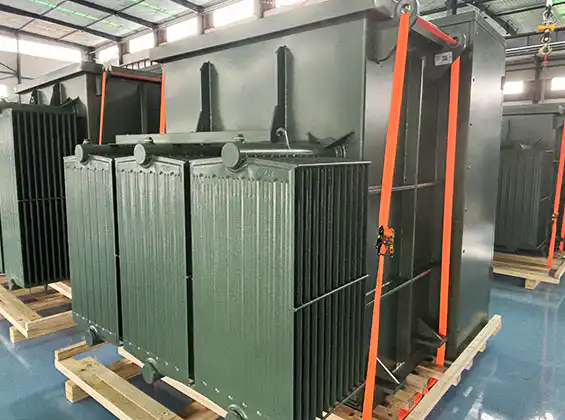

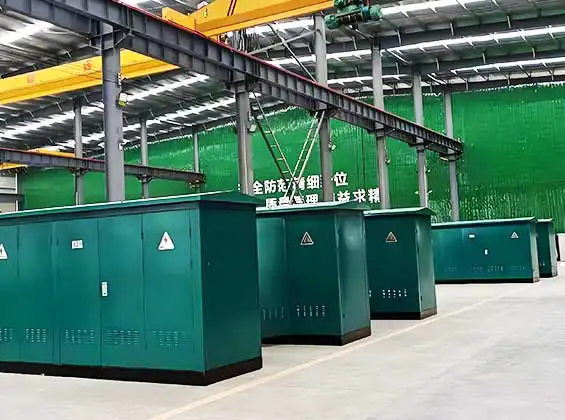

Prefabricated Substation Production Details

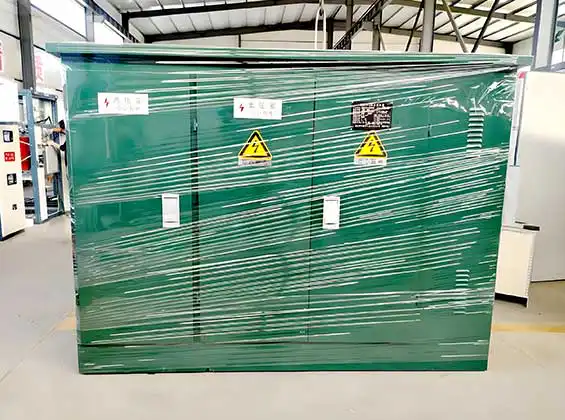

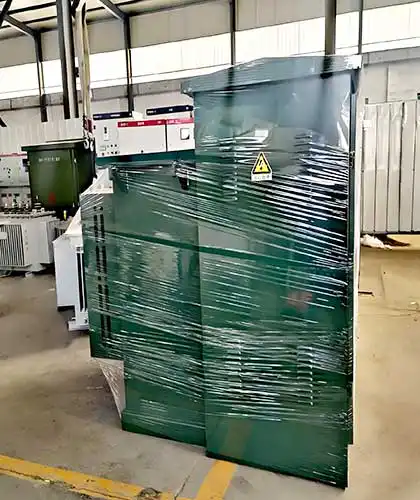

Prefabricated Substation Shipment
